Demonstrators

Platform-ZERO innovations are tested across 4 PV manufacturing lines across Europe

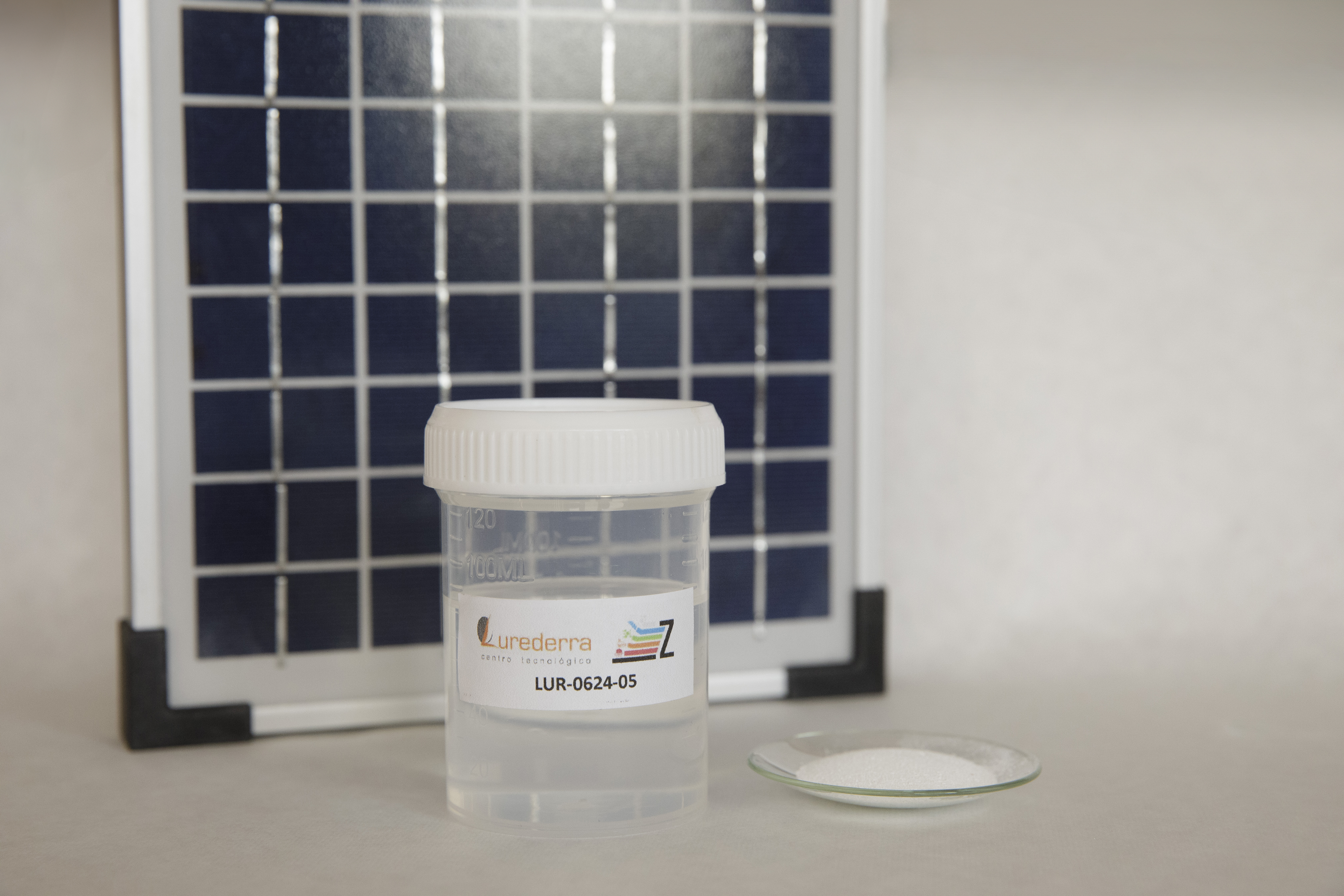

Smart coatings for PV

Technology maturity level: industrial production pilot line

Location: SPAIN

Lurederra smart coating line-flow powder production line (pilot line scale),operates based on a combination of production processes

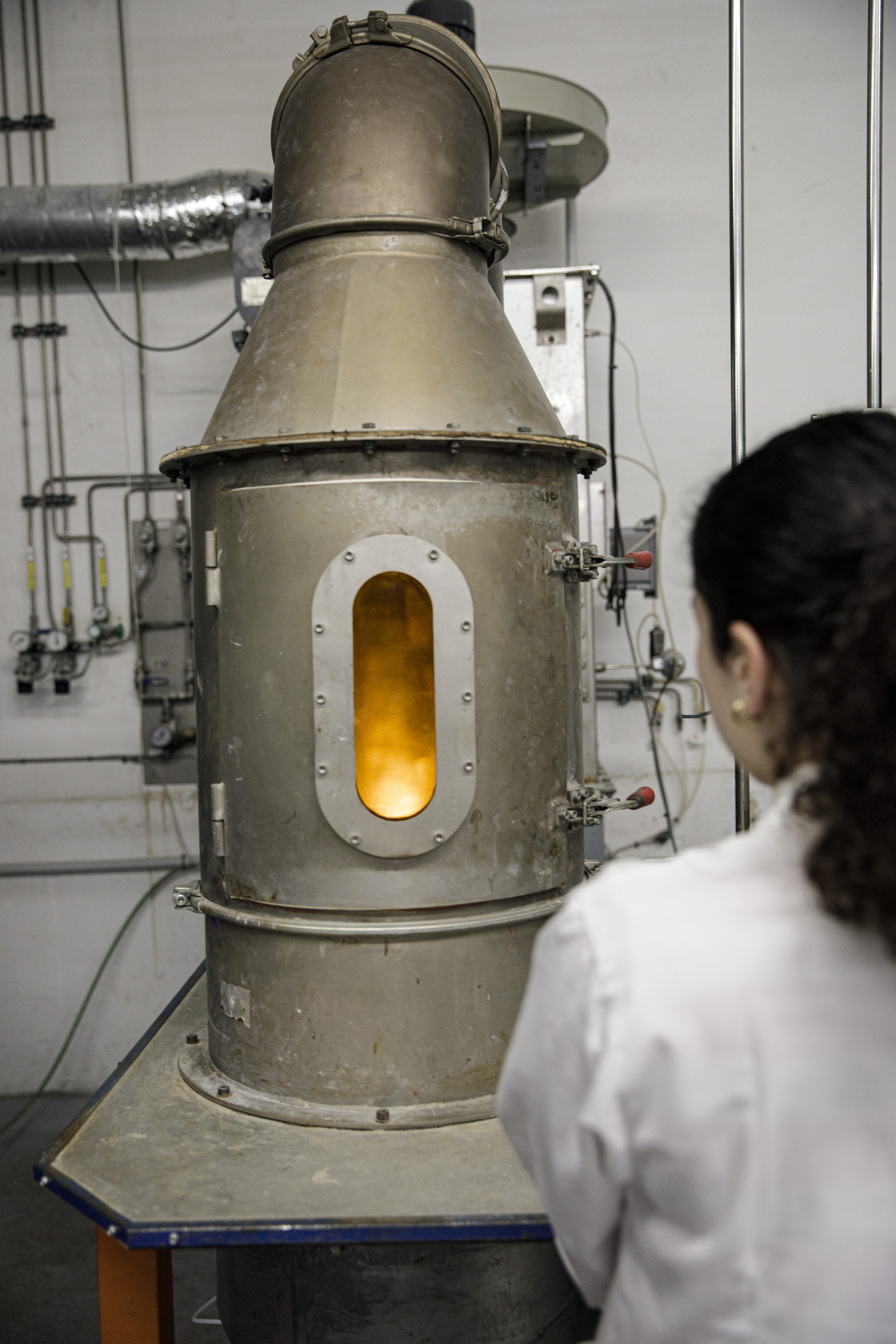

nanoparticle powder synthesis by flame spray pyrolysis

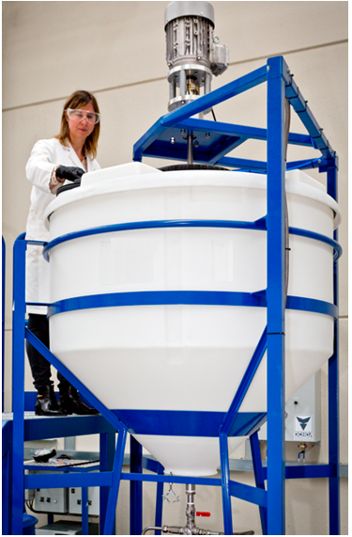

Nano-dispersion preparation

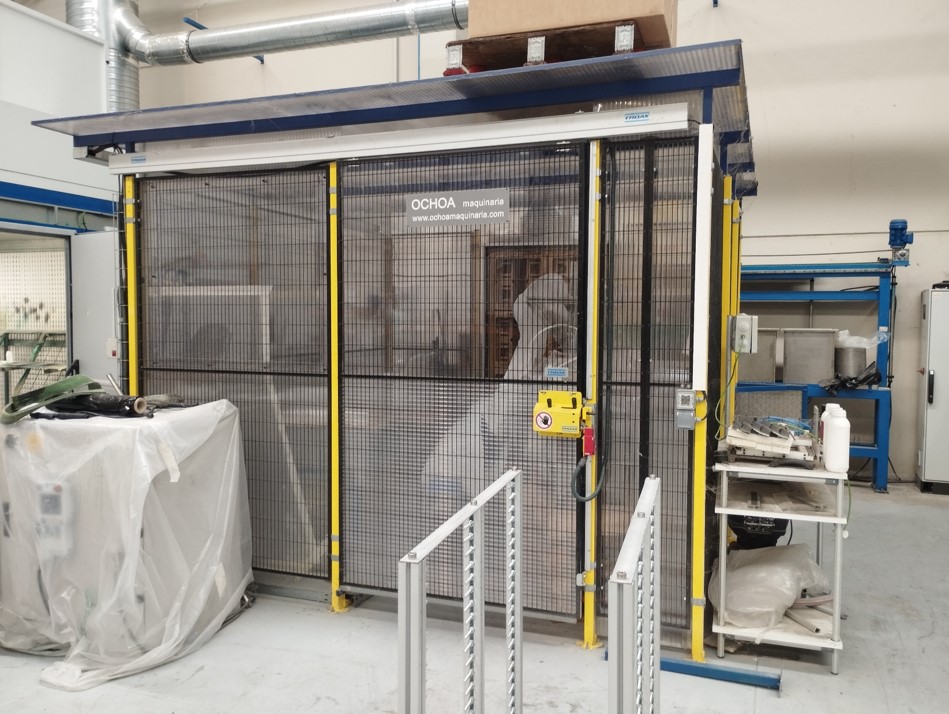

Manual or robot-assisted spraying on glass

High efficiency CIGS solar modules

Technology maturity level: Pre-industrial production like pilot line

Location: GERMANY

ZSW operates a production-like sheet-to-sheet pilot-line system for high efficiency CIGS PV cells and modules with maximum size 30×30 cm2. The PV modules architecture is Glass/Mo/CIGS/CdS/i- ZnO/Al:ZnO multi-stacked layers.

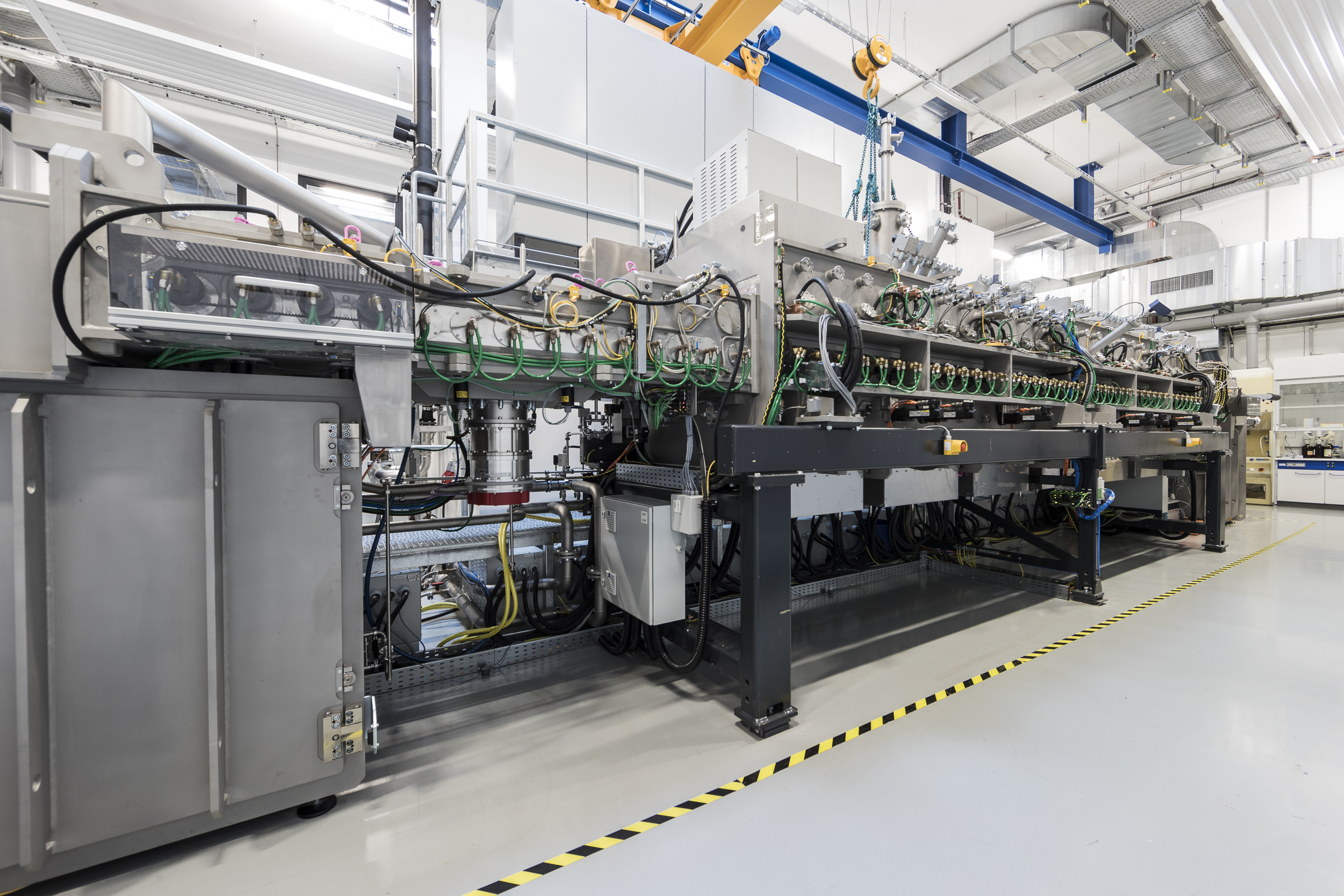

2. ZSW Inline-system for CIGS absorber deposition on up to 30x30cm² large substrates

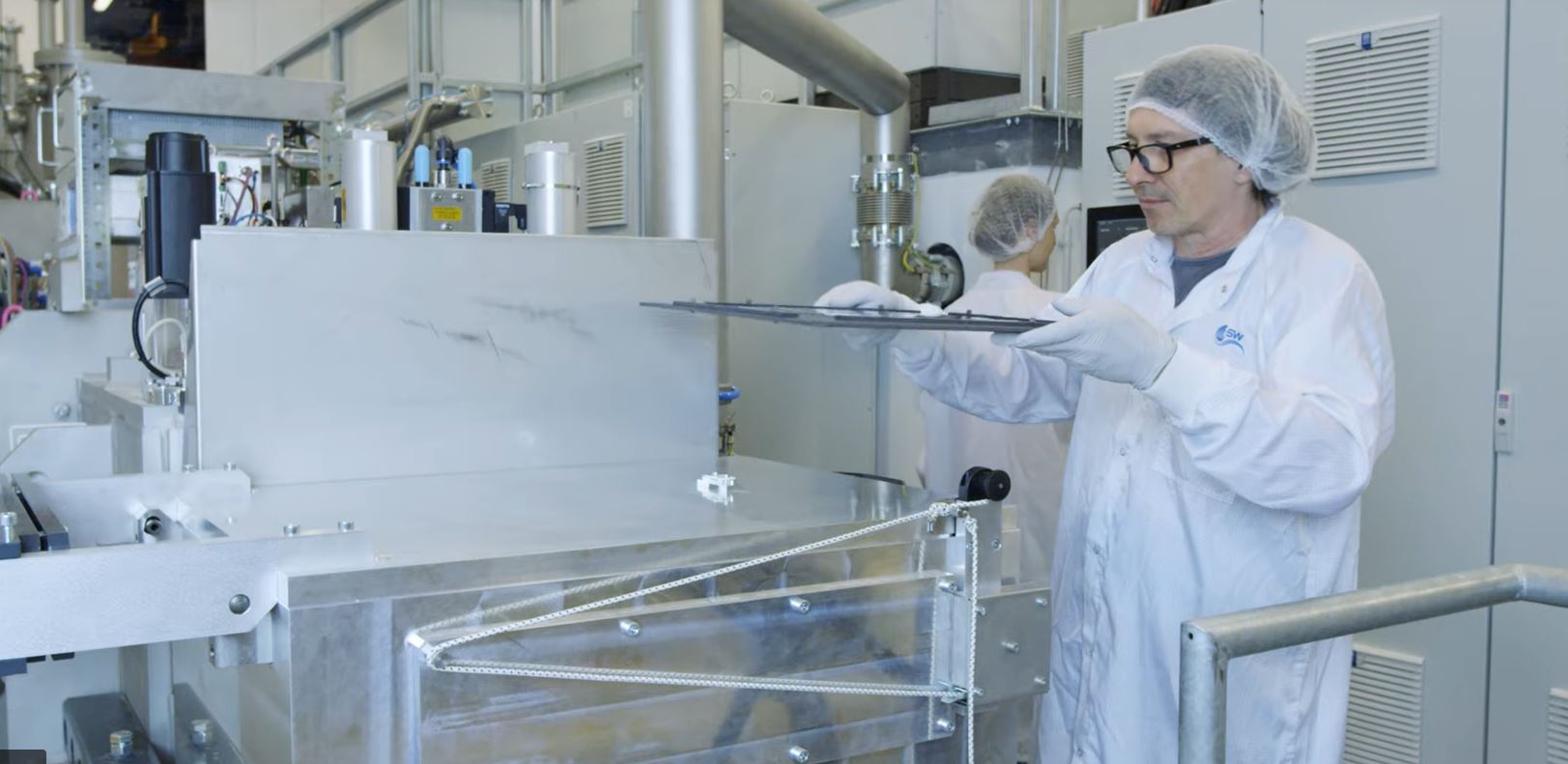

3. User working on the ZSW Inline-system for CIGS absorber deposition.

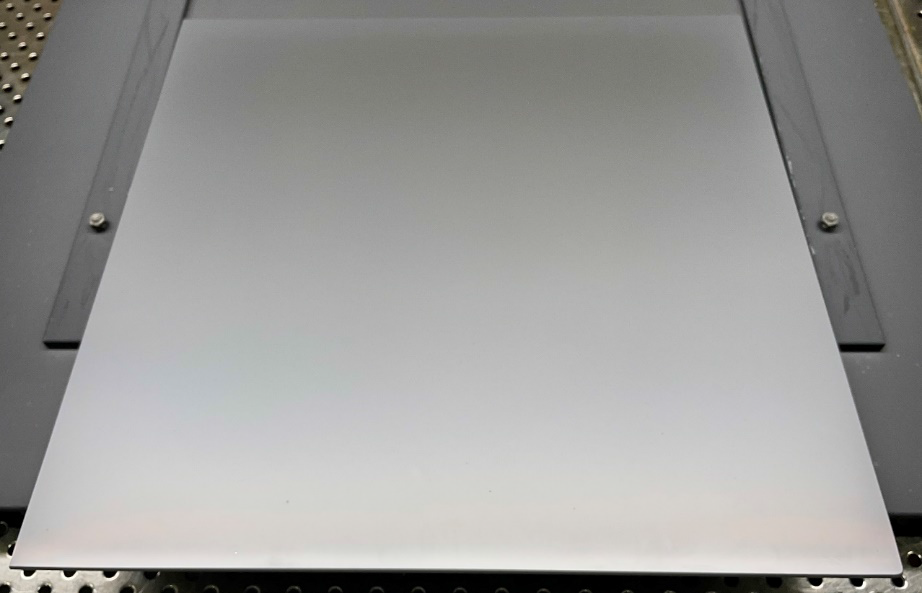

4. Visual inspection of 30x30cm² sample after the CIGS absorber deposition in the ZSW inline-system.

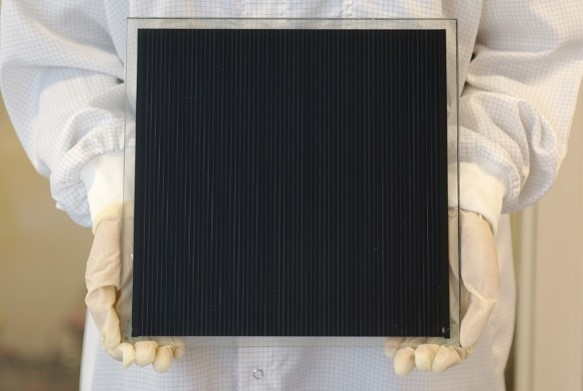

5. A typical thin-film photovoltaics sample from the inline-deposition system of ZSW.

6. A typical thin-film photovoltaics sample from ZSW.

Customizable CIGS flexible solar foil

Technology maturity level: Pre-commercial industrial production

Location: AUSTRIA

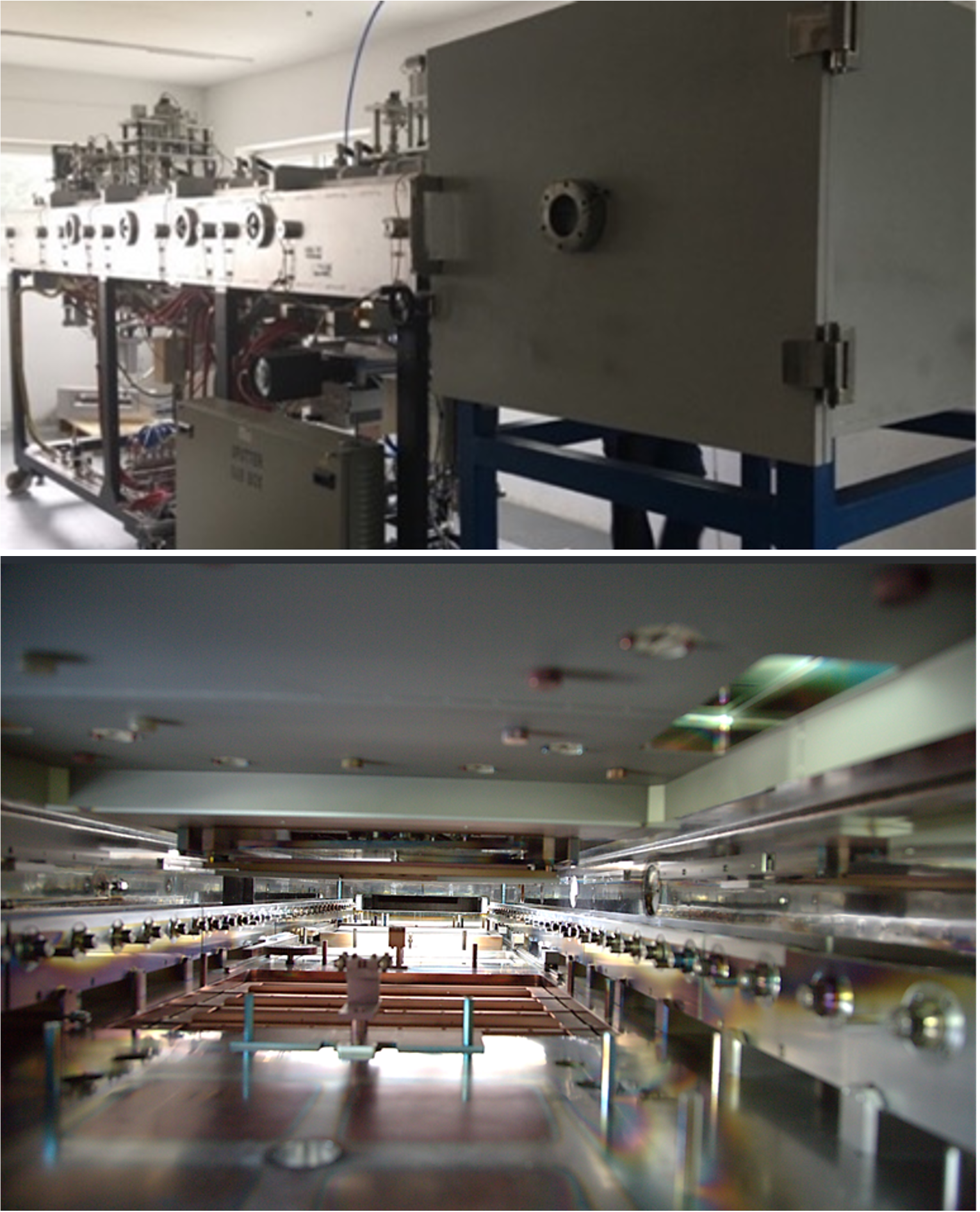

Sunplugged operates roll-to-roll line for the production of flexible CIGS foil for customized PV with a potential production throughput of 1.2 MWp and is commissioning an additional 5 MWp line.

Sunplugged‘s PV modules with customizable geometry, size and output voltage

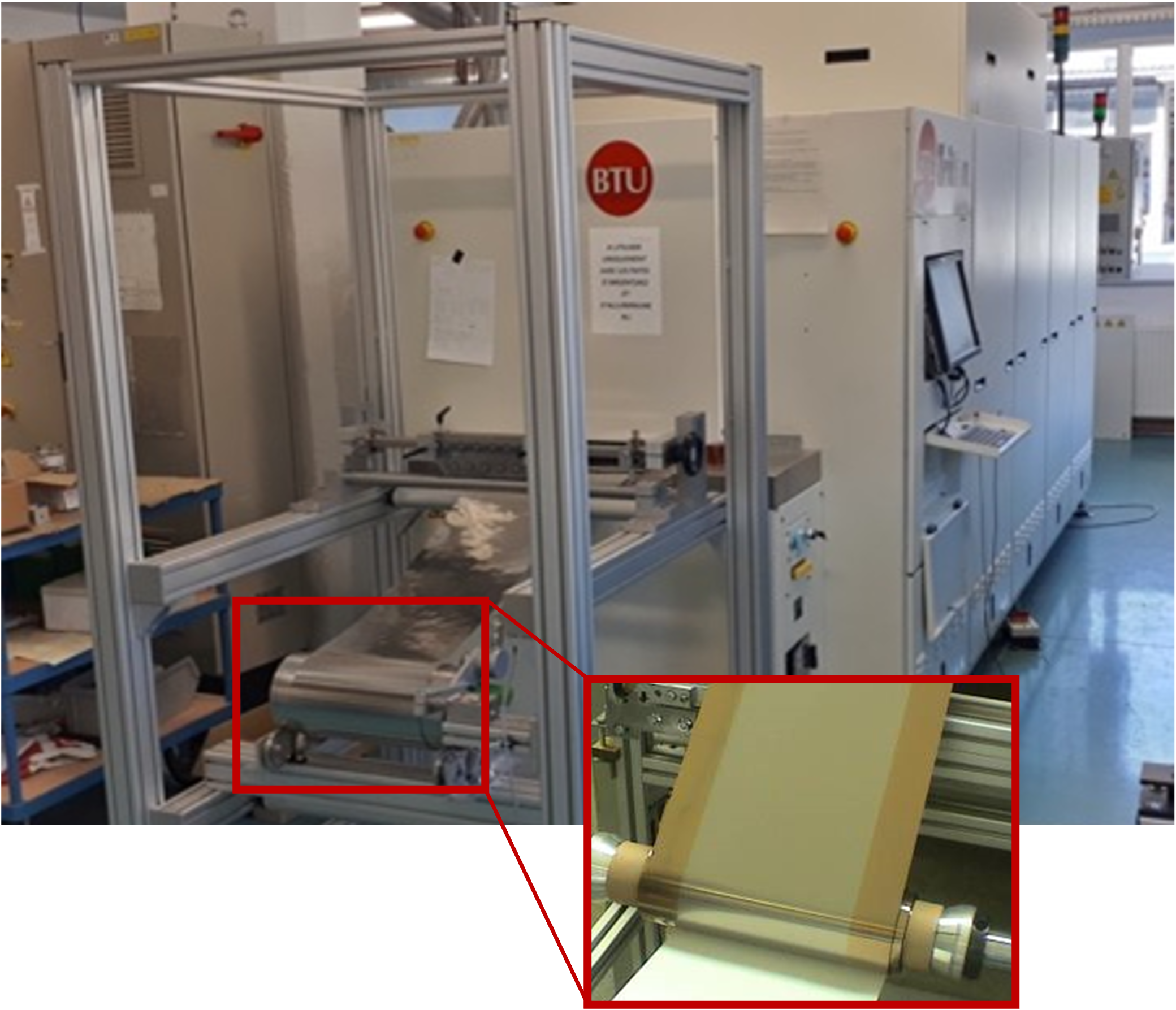

1. Substrate fabrication: Roll-to-roll deposition and sintering of insulating SiOx layer on 50µm thin steel foil

2. Back contact deposition: sputtering of molybdenum

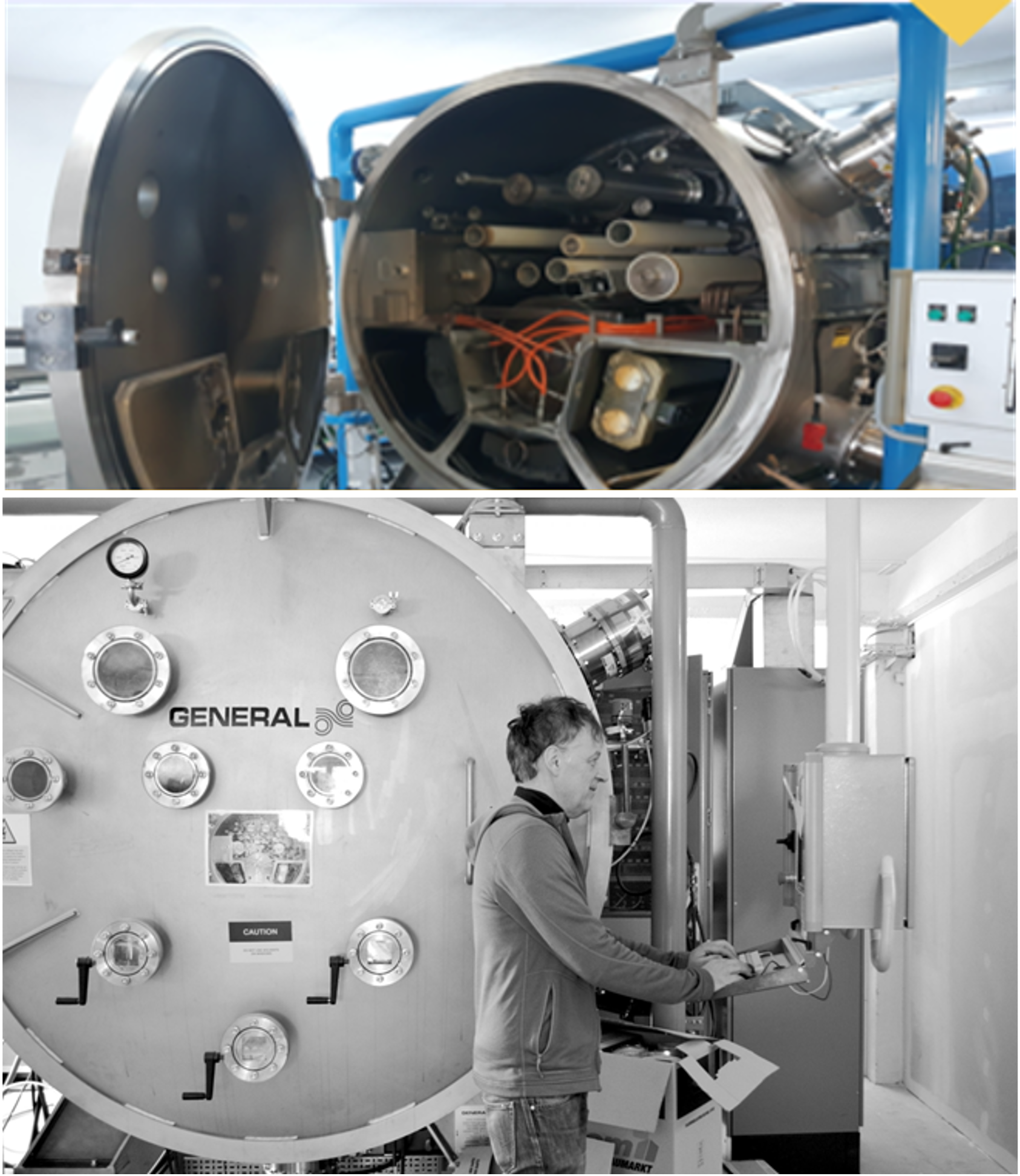

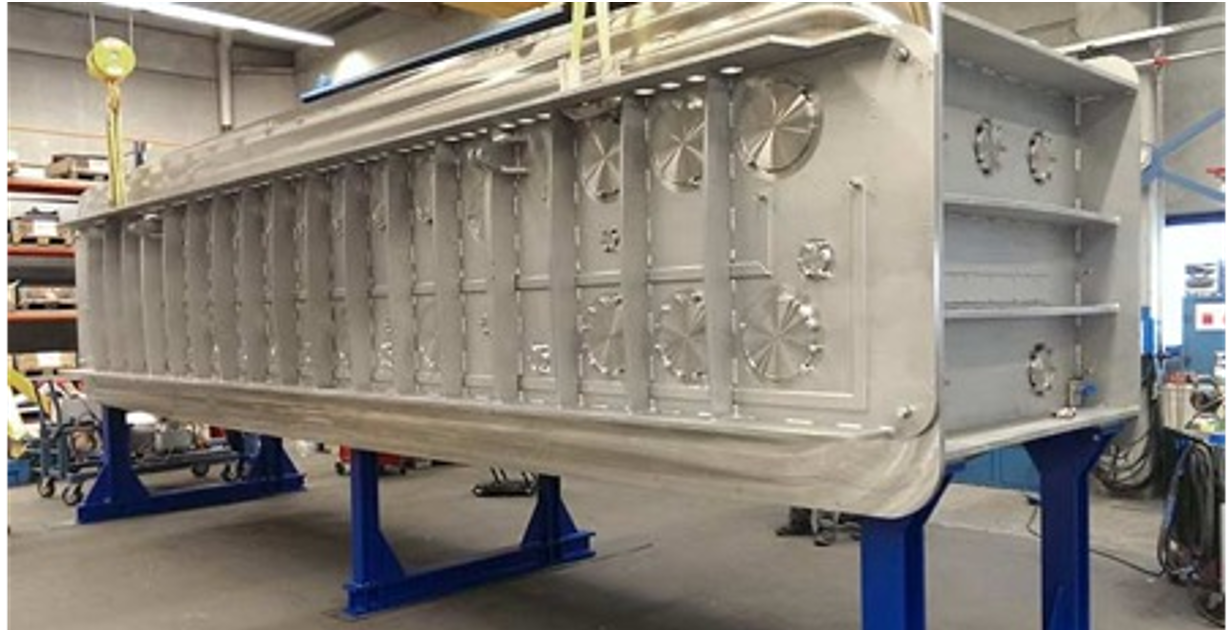

3. Deposition of the CIGS absorption layer in a sputter-evaporation hybrid process

4. Deposition of the front layers: sputtering of ZnOS buffer layer, iZnO window, and ITO front contact

5a. Module interconnection: Combination of laser scribing and printing processes

5b. Module interconnection: laser scribing, inkjet printing of dielectric ink, jet dispensing of conductive ink

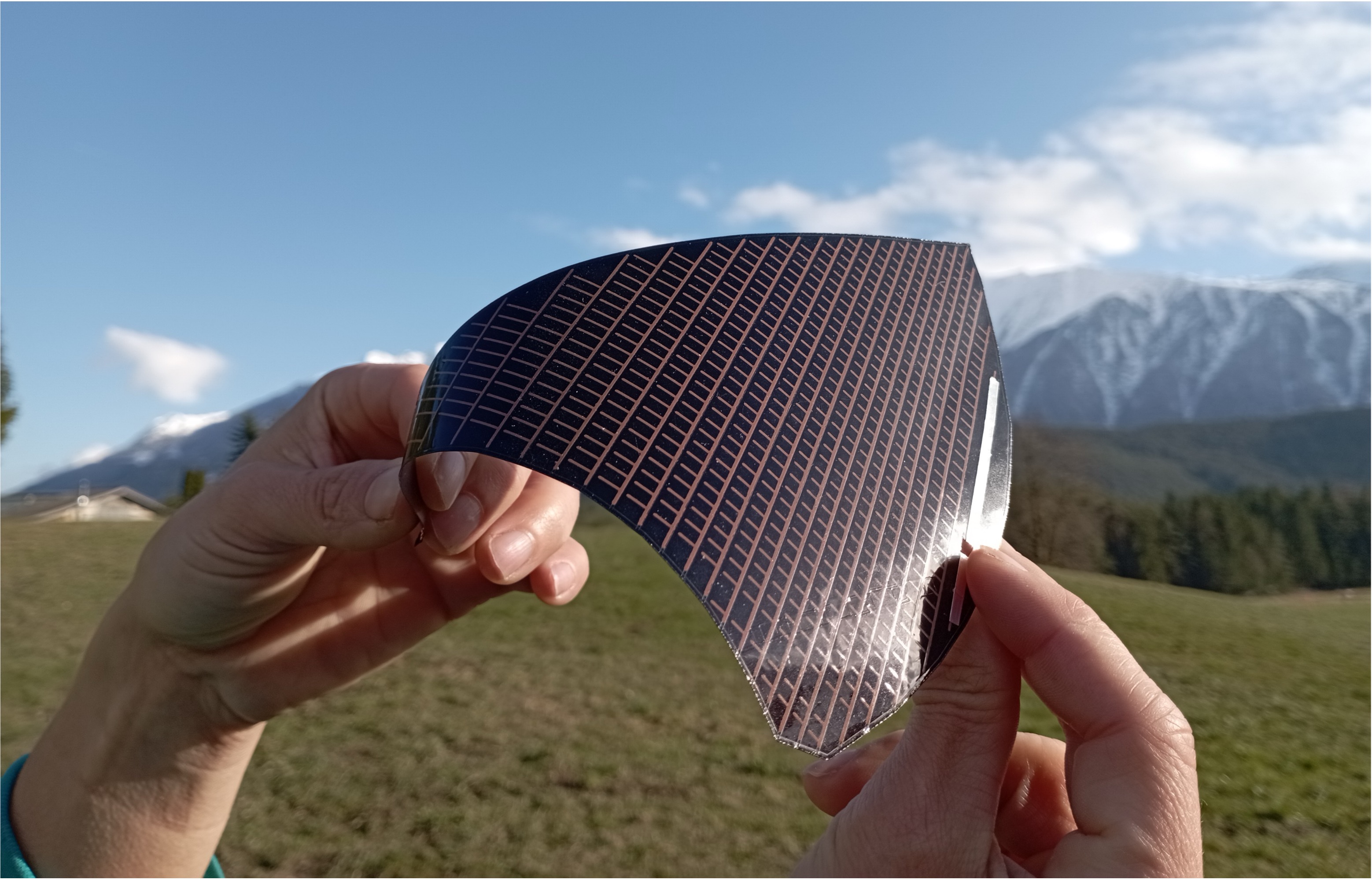

6. Flexible PV product: possibility of all different kinds of shapes, sizes and output voltages

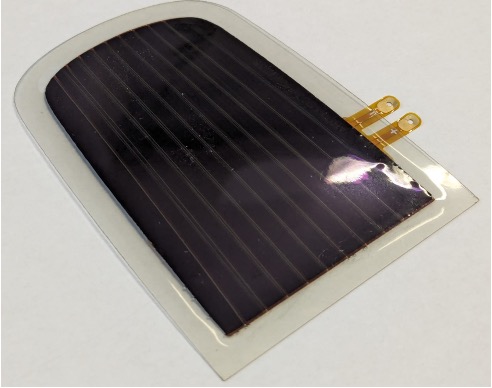

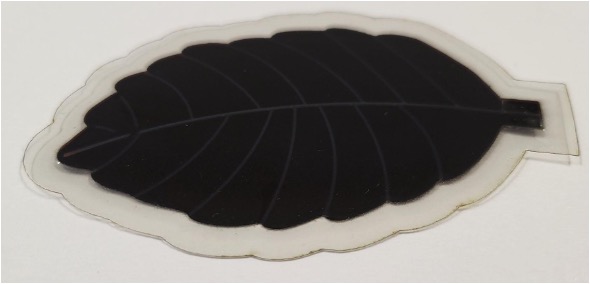

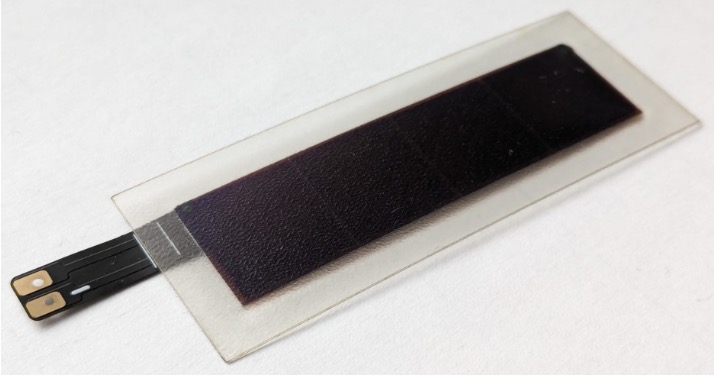

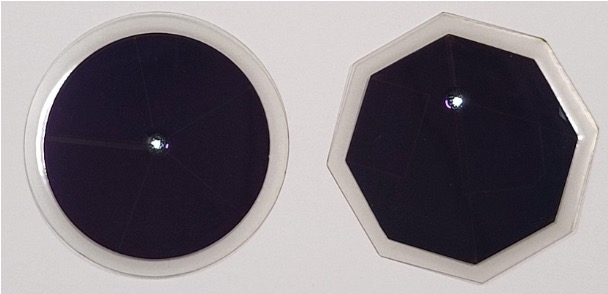

Perovskite solar modules

Technology maturity level: Industrial pilot line

Location: POLAND

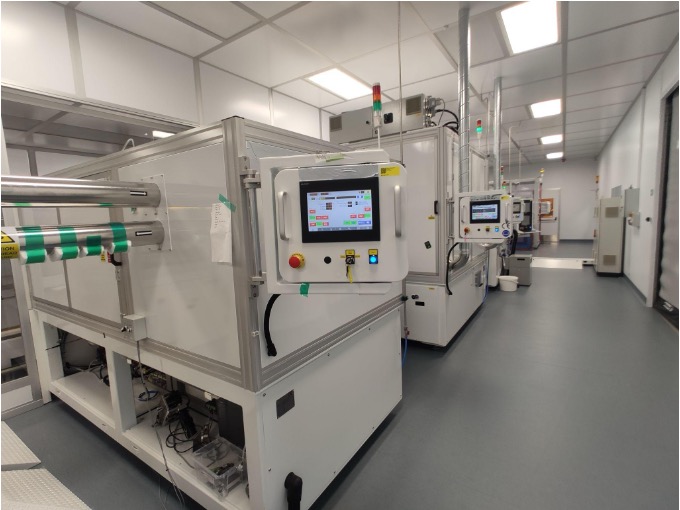

SAULE’s pilot production line of perovskite PV modules (with a potential production throughput of 4 MW) is based on a sheet-to-sheet sequential multi-process, where a flexible substrate (up to 1×1 m2 size) is moved from station to station.
